Machine and material
3000 × 1500 mm bed with a 105 A plasma source. 20 mm is the normal maximum. 25 mm may be considered after review of material, geometry and finish; it is not offered with the same cut quality as thinner plate.

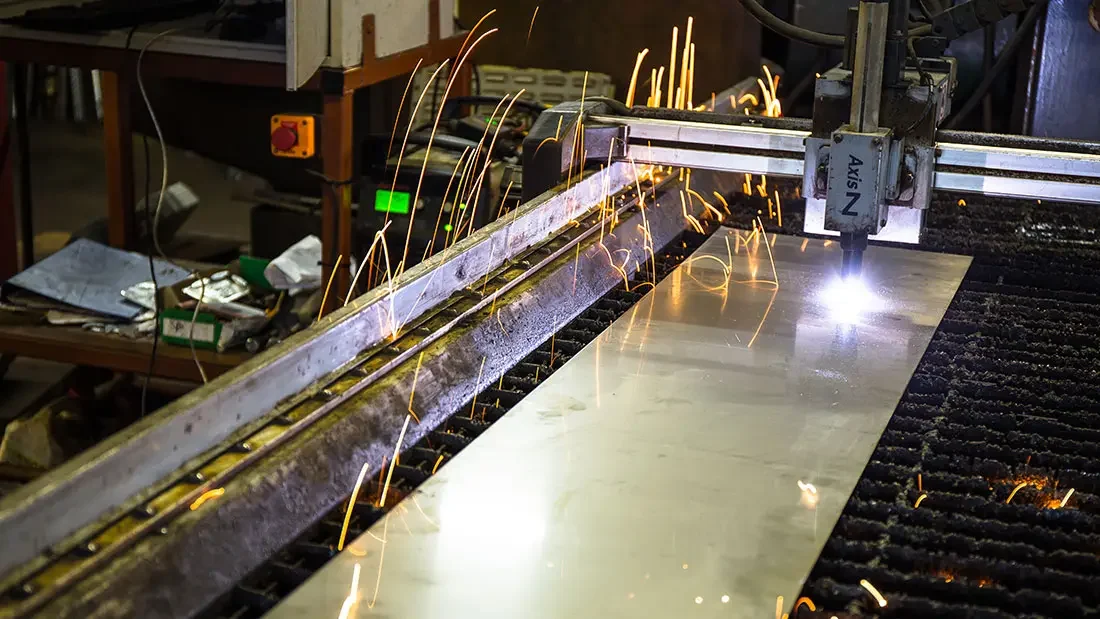

CNC plasma cutting
Profile cutting from plate, with the material, geometry and required finish reviewed before cutting.
Enquire about cnc plasma cuttingWhat to expect from the edge
A plasma edge can show taper, bevel and attached dross. Piercing and cutting create a heat-affected edge. Tell us if an edge will be welded, machined, tapped or left visible. Plasma is not a laser or waterjet finish.
Holes and fine detail
Small holes and fine details may need another approach. We can mark centres for later drilling instead of plasma-cutting the final hole. Centre marks locate holes; they are not finished holes. Explain which holes are critical.
Drawings and approval
DXF or a clean vector drawing at the correct scale is preferred. Photos, sketches and logos can be reviewed; tracing, cleaning or redrawing is normally a separately agreed charge. We review geometry, agree the quote and drawing, confirm payment and release the job through the workshop. Uploading a drawing does not instruct us to cut.
